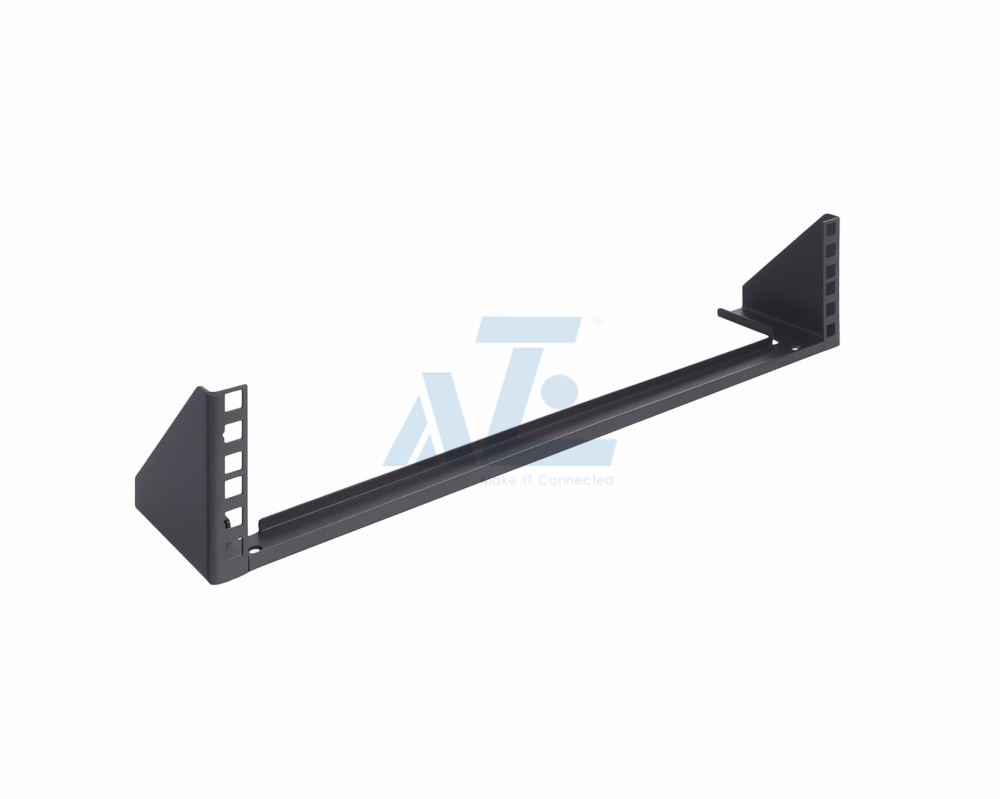

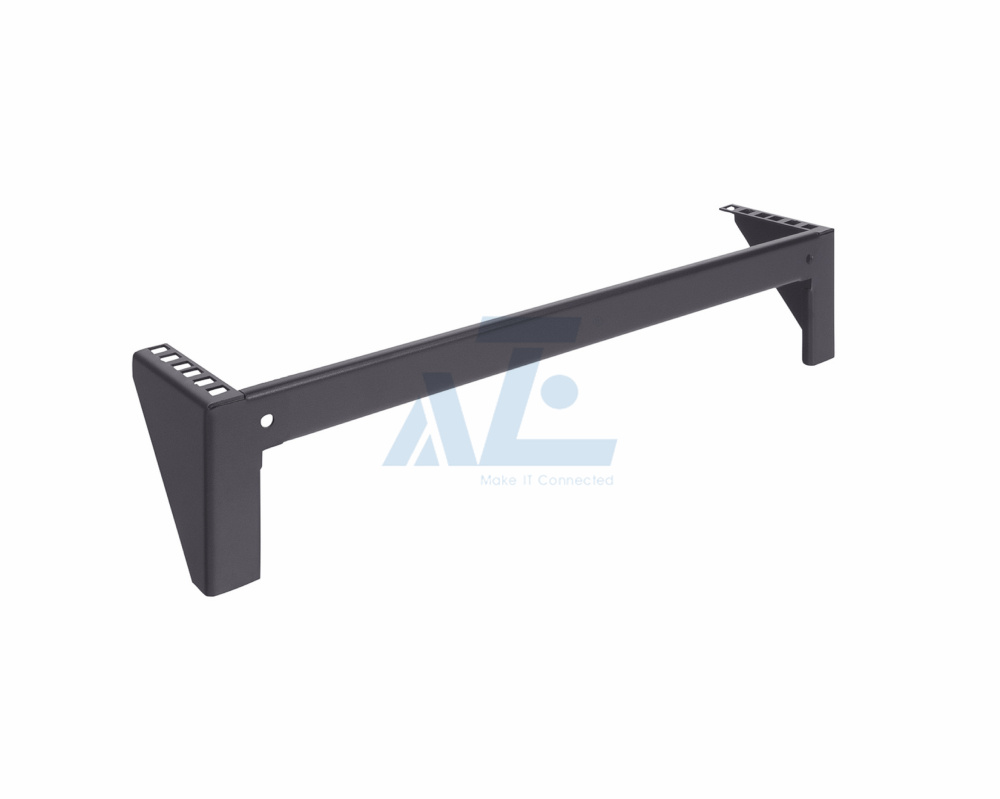

2U 19" Vertical Wall Mount Rack Bracket
Model:RWBV2U12
The 2U vertical rack mount bracket enables servers, networking switches, patch panels or AV equipment to be mounted vertically for easy equipment access where a full rack is not desirable.
- 2U rack height,vertical mounted
- Convenient solution for all your small/home office needs
- Sturdy cold rolled steel construction
- Constructed to EIA-310 19 inch data rack standards
Overview
2U 19in Low Profile Open Verticall Wall Mount Bracket
RWBV2U12 Features
| Key Features | |
| Rack Height | 2U |
| Rack Mounting Width | 19" |
Features & Benefits
- Vertical Mount Design for low profile devices
- Sturdy cold rolled steel construction
- Wall mounting holes are 16” center to center for greater stability, and mounting to standard wall studs
Specification
| Physical | |
| Color | Black |
| Unit Dimensions (WxDxH) | 19.7inches x 12inchesx4.5inches |
| Unit Weight | 10lbs. |
| Shipping Dimensions(WxDxH) | 20.7inchesx13inches x5inches |
| Shipping Weight | 11lbs. |
| Certifications | |
| Approvals | EIA/ECA-310-E, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| MODEL | Dimension | Description |
| RWBH1U12 | 501mmW x 300mmD x 1U | 1U 19in Hinged Wall Mount Bracket for Patch Panels-12in Deep |
| RWBH2U12 | 501mmW x 300mmD x 2U | 2U 19in Hinged Wall Mount Bracket for Patch Panels-12in Deep |
| RWBH4U12 | 501mmW x 300mmD x 4U | 4U 19in Hinged Wall Mount Bracket for Patch Panels-12in Deep |
| RWBV1U12 | 501mmW x 300mmD x 1U | 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket-12in Deep |
| RWBV2U12 | 501mmW x 300mmD x 2U | 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket-12in Deep |
| RWBV4U12 | 501mmW x 300mmD x 4U | 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket-12in Deep |
*********Notes**********
-
Shipping Option: Assembly unit
-
19" vertical rail types options: #10-32 threaded holes, #12-24 threaded holes or M6 square holes
-
A wide range of server rack accessories compatability
-
Different range of wall mount cabinets availablity: glass door wall mount cabinets, honeycomb perforated doors wall mount enclosures, vertical mount enclosures and 10" soho wall mount cabinets.
-
White or black server rack enclosure , colocation server cabinet, Server Rack PDUs,KVMs and aisle containment solution available.
